Connection with Google Cloud PDO DBLIB

If you do not have the PDO DBLIB driver enabled, check below our documentation on how to enable this driver in Scriptcase for connection.

• To enable the PDO DBLIB: click here

ATENÇÃO: Se você não possuir uma base de dados no Google Cloud criada, verifique como realizar a criação clicando aqui.

Creating a connection to Scriptcase

See below how to create a connection in your Scriptcase project, using the Driver enabled (PDO DBLIB) and the Google Cloud MSSQL Server database.

1 - Access a project from your Scriptcase.

2 - Click the New Connection icon to create a connection

or access the Database> New connection menu.

After that, a screen will appear with all database conexoes.

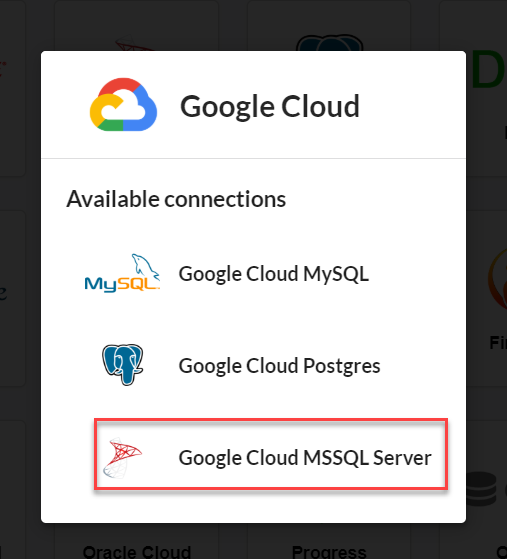

3 - Select the Google Cloud connection.

4 - And choose the Google Cloud SQL Server database.

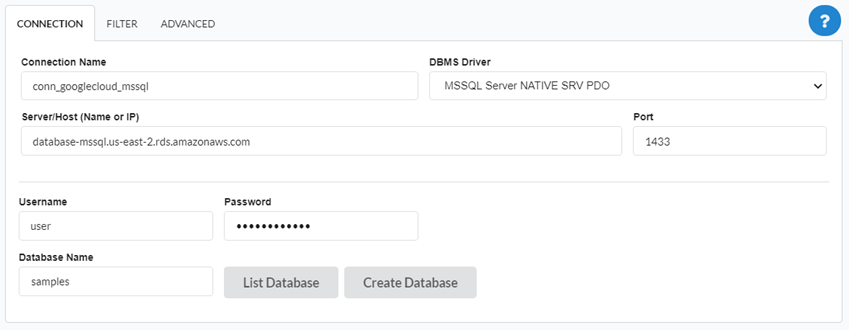

Connection

Enter the parameters for connecting to your Amazon RDS MSSQL Server database as follows:

• Connection name: Define the name of your new connection. By default, Scriptcase adds the prefix conn along with the database name.

• SGDB Driver: Select the MSSQL Server Driver to connect. In this example, we use the Driver PDO DBLIB.

• SGDB server: Enter the domain of the Google Cloud server where the database is installed.

• EX: banco-mssql.us-east-2.rds.amazonaws.com

• Port: Enter the port to connect to the MSSQL Server. By default, the defined port is 1433.

• Database: List and select the database you will connect to.

• EX: samples

• User: Inform the user to authenticate the connection to your database.

• Password: Enter the password to complete the authentication process.

• Test connection: Click this button to get a response to the Scriptcase request to find out if the parameters entered are correct.

Filter

Accessing this tab, you can configure which Database items will be displayed on the connection, depending on the owner or not.

Show

It allows the connection to see tables, views, system tables and procedures depending on the items selected by the user. By default, the items Tables and Views are already selected by Scriptcase.

• Tables: Selecting this option, the tables in your database will be displayed.
  • By default, Scriptcase enables this option.


• Views: Selecting this option, the views of your database will be displayed.
  • By default, Scriptcase enables this option.



• System Tables: Selecting this option, the system tables of your database will be displayed.

• Procedures: Selecting this option, the procedures of your database will be displayed.

Filters

Allows you to define which tables and owners are displayed.

• Tables: You can define in this option which tables will be displayed. The configuration can contain a PREFIX%% or name of the tables to display.
  • By default, Scriptcase leaves this option empty.
  • EX:





• Owner: Inform the user who sees the tables informed for display.
  • The user must be in capital letters as in the example above.


• View: Choose whether tables for the informed owner are displayed.

NOTE: By using table filtering, you eliminate unnecessary tables for your project and improves the performance of your database connection.

Advanced

In this tab, you have access to specific settings for the connection. The settings made in this session impact the data display and application performance.

• client_encoding: Select the encoding used in your database. In the example above, we use the client_encoding utf8.
  • By default, the utf8 charset is set.


• Decimal Separator: Select the separator type of the decimal records, between comma and period.
  • By default, the point . is selected as a separator.


• Persistent Connection: Define whether conexoes will be closed after the execution of your scripts in Scriptcase applications.
  • By default, Scriptcase disables this option.


• Use the schema before the table name: Define whether the database schema will be displayed before the table names.
  • By default, Scriptcase enables this option.

Connection Questions or Problems?

Contact our [support][link_support]{:target=’_ blank’} in case of connection problems or questions regarding this database.
