Refined Search

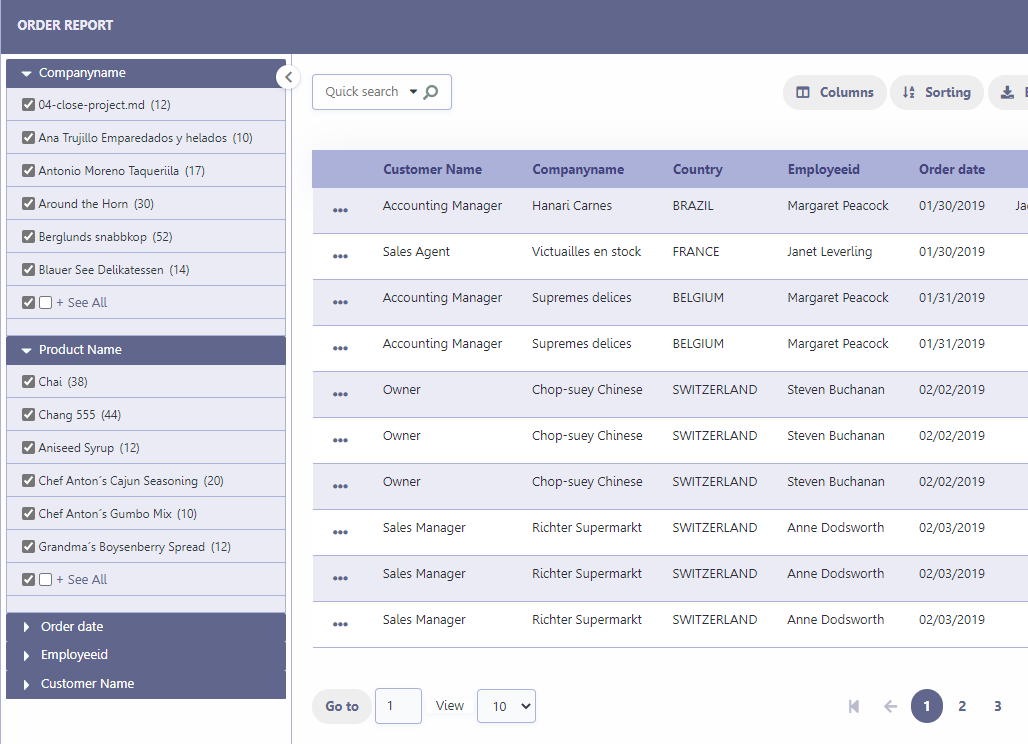

The refined search is a feature where you can integrate a search interface, next to the Grid, limiting values according to a universe that exists in the connected database.

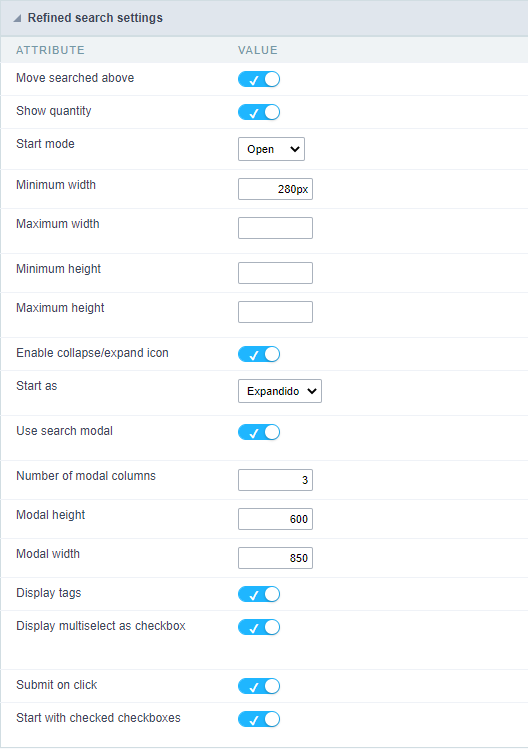

Settings

Move searched above

When you filter by a field, this field will be moved to the top of the refined search stack.

Show quantity

Alongside the values of the fields, you will see the existing amount. Ex.: Brazil (1547)

Start mode

This option sets whether the fields select options will start open or closed.

Minimum width

This option sets the minimum width for the refined search fields, value in pixels.

Maximum width

This option sets the maximum width for the refined search fields, value in pixels.

Minimum height

This option sets the minimum height for the refined search fields results, value in pixels.

Maximum height

This option sets the maximum height for the refined search fields results, value in pixels.

Collected/Expanded

Enables the option collapse or expand the refined filter options panel to improve the Grid visualization.

Start as Collapsed/Expanded

Available only when Collapsed/Expanded option is active, dfines whether the refined filter will start open or closed.

These are the options:

Start open

Start closed

By default, for new applications, this option will come with the value

Start Open

Use modal

When enabled, sets the modal opening when clicking the View All option.

The button + View All is defined in the filter filds settings, by limiting the amount of records displayed in the field. For more details Click Here.

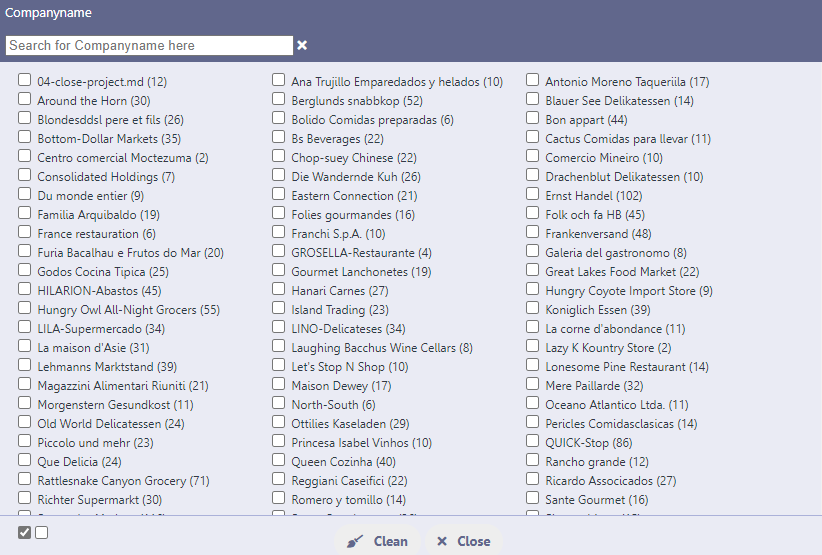

Example of modal screen

Number of modal columns

Defines the number of columns for displaying records in the modal.

Only the number must be informed, without measurement unit, otherwise the value will not be considered.

Modal width

Defines the pixel width of the modal that will be displayed.

Only the number must be informed, without measurement unit, otherwise the value will not be considered.

Showing tags

Defines whether or not to display tags with selected filter values.

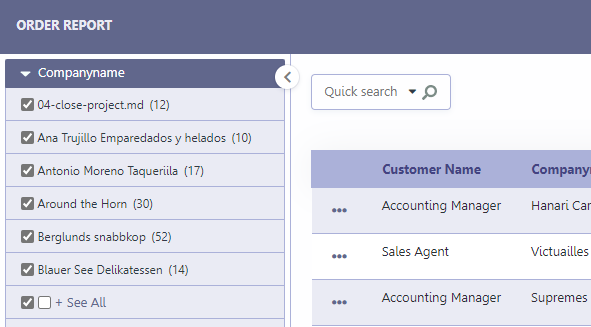

When active the tags are displayed, as in the image below.

Display as checkbox

Defines whether filter values ​​will be displayed with checkboxes or as links.

Example of display with checkbox

When enabled, the values ​​will have a checkbox indicating your selection whether they are selected or not.

Display example without the checkbox

When disabled, filter values ​​are displayed as a link, and the select button is shown so that more than one value can be selected.

Submit when scoring

When active, the filter is applied instantly after selecting the desired value.

By activating this option, the application is reloaded with each selection of filter values.*

Show marked checkbox

Defines the initial format of the filter values ​​checkbox.

When active, when accessing the application, the filter checkbox is already marked, representing the application’s data universe. This way, the user will have to uncheck the options that he does not want to see.

When disabled, when accessing the application the filter checkbox will be unchecked. This way, the user will have to check the options he wants to filter.

Example of enabled option

Example of disabled option

Select fields

Refined Search fields

The refined search is automatically added to the Grid application when one or more Grid fields are selected in the tab “select fields”.

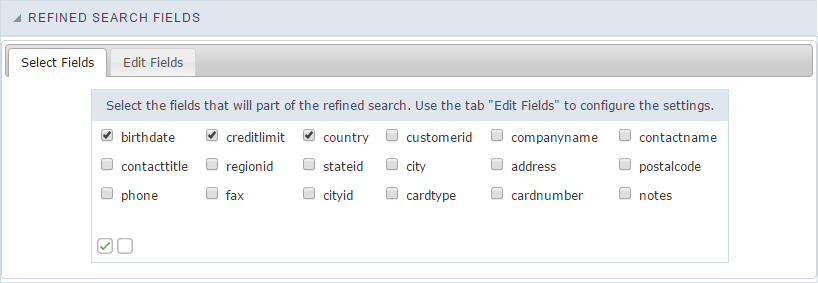

Selecting fields of refined search

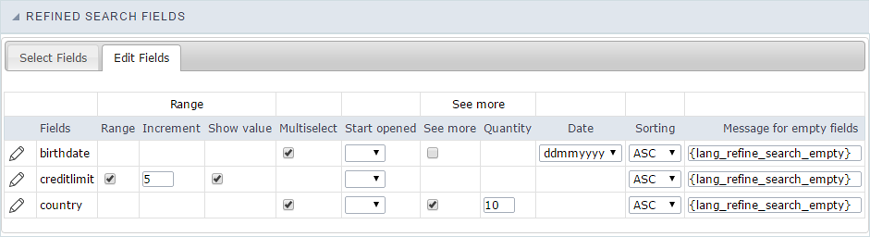

Edit fields

In the tab “Edit fields”, you can configure each field according to what you need to display within the application.

Fields

Listing of selected fields in the tab “select fields”.

RangeThis

option activate a slider with intervals between the smallest and largest value.

Increment

When using the range this option will set an integer value to increase the range.

Show value

When checked, displays the range values in the slider.

Multi select

Enables multiple selection values to perform the filter.

Start opened

This option sets the initial mode for fields selection display in refined search.

See more

When checked, enables the option to “see more” for the filter records. This is recommended when the selected field has a big amount of records. You will be able to click to “see more” or “see less”.

Quantity

This option sets the initial amount of records to be displayed for each field selected.

Date

This option sets the date format that is displayed in the date fields inside the filter.

Sorting

This option sets the records sorting for each selected field.

Message for empty fields

This option sets a message to be displayed when the field has empty values. You can also use a variable from Scriptcase language system.
