Export

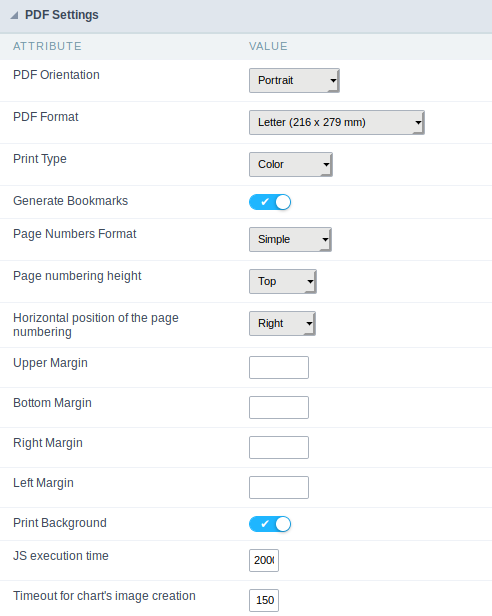

PDF Settings
PDF Orientation
Allows you to set whether to print in Portrait or Landscape orientation.
PDF Format
It allows you to define the PDF paper format (letter, A4, others).
Print Type
It allows you to set whether the print mode as colored or economical with no colors.
Generate PDF directly
Opens the generated the PDF without the need to display an intermediate page with a link to download the file.
PDF Chart depth output selection
It allows the end-user to decide on the fly the depth of the Group By to exports.
Selecting page break per level
It allows the end-user to define the break level to skip to the next page in the generated PDF.
Configurable PDF
It allows the end-user to configure the PDF parameters on the fly.
Generate bookmarks
Generate bookmarks automatically according to the Group By.
Page numbering format
Set the numbering format as Simple (1,2,3,4,5, …), Full (1 / n, 2 / n, 3 / n, …) or no numbering.
Page numbering height
It allows you to align the numbering vertically, at the top or bottom of the page.
Horizontal position of page numbering
It allows the horizontal alignment of page numbering (Left, Center, Right).
Print background
Allows you to print background in the PDF file.
JS Runtime
The maximum time, in seconds, of server waiting when running JS.
Timeout for chart’s image creation
Set the timeout to wait for the chart image creation in the PDF

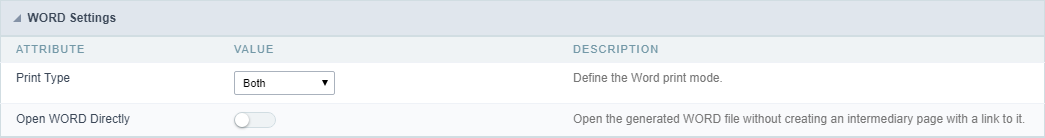

WORD Settings
Word configurable
It allows the end-user to configure the export parameters on the fly.
Export Modules of Grid
This option allows the developer to choose which modules are available in the grid export. The user can select the modules at runtime.
Example:
Disabling the Summary option in the development environment.
You can see the Summary option disabled at running time.
Summary Export Modules
This option allows the developer to choose which modules are available in the summary export. The user can select the modules at runtime.
Example:
Disabling the Summary option in the development environment.
You can see the Summary option disabled at running time.
Export with password
This option allows the developer to set a password to export the file.
Password
It allows the developer to set the requested password when exporting the file.
Runtime Example:
Select columns
It allows the user has the option to choose the columns he wants to export at runtime.
Open WORD Directly
Opens the generated WORD file without the need to display an intermediate page with a link to download it.
WORD Settings
Print Type
It allows you to set whether the print mode as colored or economical with no colors(Black and White).
CSV Settings
Configurable CSV
It allows the end-user to configure the CSV export parameters on the fly.
Export Modules of Grid
This option allows the developer to choose which modules are available in the grid export. The user can select the modules at runtime.
Example:
Disabling the Summary option in the development environment.
You can see the Summary option disabled at running time.
Summary Export Modules
This option allows the developer to choose which modules are available in the summary export. The user can select the modules at runtime.
Example:
Disabling the Summary option in the development environment.
You can see the Summary option disabled at running time.
Export with password
This option allows the developer to set a password to export the file.
Password
It allows the developer to set the requested password when exporting the file.
Runtime Example:
Select columns
It allows the user has the option to choose the columns he wants to export at runtime.
Open CSV Directly
Opens the generated CSV file without the need to display an intermediate page with a link to download it.
CSV Settings
Line separator
It allows you to define the line separator character, each line representing a record.
Column separator
It allows you to define the column separator character, each column representing a database field.
Text delimiter
It allows you to define the character used to delimit the text of the columns when we have database fields of type String.
Add label
It allows you to define displaying the label of the columns in the first line of the file.
XLS Settings
Export with password
This option allows the developer to set a password to export the file.
Password
It allows the developer to set the requested password when exporting the file.
Runtime Example:
Select columns
It allows the user has the option to choose the columns he wants to export at runtime.
XLS Configurable
It allows the end-user to configure the XLS export parameters on the fly.
Open XLS Directly
It allows the end-user to configure the XLS export parameters on the fly.
XLS Settings
Export Modules of Grid
This option allows the developer to choose which modules are available in the grid export. The user can select the modules at runtime.
Example:
Disabling the Summary option in the development environment.
You can see the Summary option disabled at running time.
Summary Export Modules
This option allows the developer to choose which modules are available in the summary export. The user can select the modules at runtime.
Example:
Disabling the Summary option in the development environment.
You can see the Summary option disabled at running time.
Format
It allows defining the Excel format of the generated document ( xls or xlsx ).
Export with totals
Show the totals when exporting the application data to Excel.
XML Settings
Configurable XML
It allows the end-user to configure the XML export parameters on the fly.
Export Modules of Grid
This option allows the developer to choose which modules are available in the grid export. The user can select the modules at runtime.
Example:
Disabling the Summary option in the development environment.
You can see the Summary option disabled at running time.
Summary Export Modules
This option allows the developer to choose which modules are available in the summary export. The user can select the modules at runtime.
Example:
Disabling the Summary option in the development environment.
You can see the Summary option disabled at running time.
Export with password
This option allows the developer to set a password to export the file.
Password
It allows the developer to set the requested password when exporting the file.
Runtime Example:
Select columns
It allows the user has the option to choose the columns he wants to export at runtime.
Open XML Directly
Opens the generated XML file without the need to display an intermediate page with a link to download it.
XML Settings
Use Label on the Tag
It allows using the field labels on Tags of the XML file.
XML Format
Define how to generate the records in the XML file, if it will store the values on attributes or new elements. ( Attr or Tag )
JSON Settings
Export with password
This option allows the developer to set a password to export the file.
Password
It allows the developer to set the requested password when exporting the file.
Runtime Example:
Select columns
It allows the user has the option to choose the columns he wants to export at runtime.
Open JSON Directly
It allows the end-user to configure the JSON export parameters on the fly.
JSON Settings
Configurable JSON
It allows the user to configure the XML creation parameters during the execution of the application. If this option is disabled, the end user will only have access to the settings defined by the developer.
Export Modules of Grid
This option allows the developer to choose which modules are available in the grid export. The user can select the modules at runtime.
Example:
Disabling the Summary option in the development environment.
You can see the Summary option disabled at running time.
Summary Export Modules
This option allows the developer to choose which modules are available in the summary export. The user can select the modules at runtime.
Example:
Disabling the Summary option in the development environment.
You can see the Summary option disabled at running time.
Use Label
It allows the label used in the application field to be sent in the JSON attribute.
Formatted value
It allows displaying the formatted numeric value or the value displayed in the database.

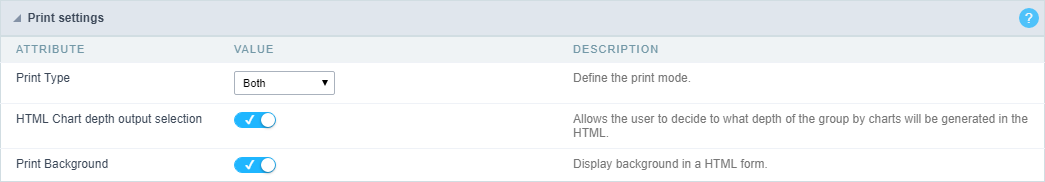

Print Settings
Configurable Print HTML
It allows the end-user to configure the HTML Printing parameters on the fly.
Export Modules of Grid
This option allows the developer to choose which modules are available in the grid export. The user can select the modules at runtime.
Example:
Disabling the Summary option in the development environment.
You can see the Summary option disabled at running time.
Summary Export Modules
This option allows the developer to choose which modules are available in the summary export. The user can select the modules at runtime.
Example:
Disabling the Summary option in the development environment.
You can see the Summary option disabled at running time.
Export with password
This option allows the developer to set a password to export the file.
Password
It allows the developer to set the requested password when exporting the file.
Runtime Example:
Select columns
It allows the user has the option to choose the columns he wants to export at runtime.
Print Mode
It allows choosing the content to print. (Current Page or Full Report)
Print Background
Allows displaying the background in an HTML form.
RTF Settings
Select columns
This option allows the end-user to select which fields he wants to export to the file.
Open RTF Directly
Opens the generated RTF file without the need to display an intermediate page with a link to download it.
