E-mail

General Settings

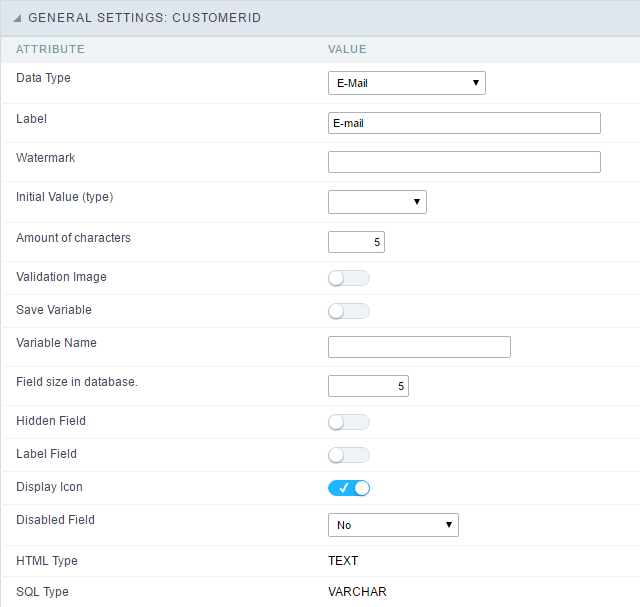

Email field configuration Interface. Email field configuration Interface.

  • Data Type : Defines the type of field for the application. When set to Email, the field applies validations for an email format.
  • Label : Set the title of a field in the application. For example: if the field is defined in the database as cmp_name_client, it will be easier to the user understand if the name is “Client Name”.
  • Watermark : Create a placeholder for the selected field.
  • Initial Value (type) : Defines the initial value for the field when in insert mode. The options are:
    • Defined Value : The field will receive the value from the text field of the defined value option.
    • System Date : The field will receive the current server date.

If you select the System Date, then it is not necessary to inform the Initial Value attribute.

  • Initial Value : You will inform the Defined Value here.

Initial Value Configuration Interface. Initial Value Configuration Interface.

  • Amount of characters : Defines the amount of characters allowed for the field.
  • Validation Image : Displays an image next to the field when it is being validated.
  • Save Variable : Saves a variable in the session with the value of the field, that can be used in other applications. For example, in the login form the user name can be saved in the session so that it can be displayed on the header of other applications.
  • Variable Name : Defines the name for the session variable that will receive the field value.
  • Hidden Field : This option makes the field hidden, but still allows its value to be processed through Javascript or PHP.
  • Label Field : This options make the field behave as a Read Only field, not allowing modifications to its value while in Insert or Update Mode.

Label Configuration Interface. Label Configuration Interface.

  • Display Icon : Displays the Email icon next to the field.
  • Disabled Field : Defines if the field will be disabled in “Insert Mode”, “Update Mode” or in “Insert and Update Mode”.
  • HTML Type : HTML Object that will be used to display the field in the form.
  • SQL Type : Informs the data type of field in the database.

Values Format

Format of Values Interface. Format of Values Interface.

Credit Card

It allows to define which cards will be listed and their internal value.

Use Title/Deny

It allows informing a new value if the previous options (American Express, Diners, MasterCard, and Visa) wasn’t chosen. It defines the label and value with the Negative Value and the Title.

Negative value

The value of the new option if the previous options (American Express, Diners, MasterCard, and Visa) wasn’t chosen.

Title

Label of the new option if the previous options (American Express, Diners, MasterCard, and Visa) wasn’t chosen.

It allows informing which fields contain the values of Credit Card Number so that it can do the validations correctly.

Reload

It Reloads the form when modifying the value.

Lookup Settings

Method used to place a description next to the field.

Lookup Settings Display for the field.

  • Use lookup to display the field description. : When enabled, the lookup settings is enabled and opens more settings.
  • SQL Command : Defines the SQL command that is going to recover the vales from the database. To build a SQL command, it is possible to use the SQL Builder tool. The SQL format needs to have the following format:
     SELECT Field_displayed FROM table WHERE Key_Field = '{Form_Field}'

The Form field needs to be referenced buy the curly brackets {}. While running the application, the field within the curly brackets is replaced by it’s value in the table.

  • Font : Defines the font used to display the lookup.
  • Font Color : Defines the color in HEX for the lookup display.
  • Font Size : Defines the font’s size in the lookup display.
  • EOF Message : Defines a message that will be displayed if there is not any results for the record.
  • Use in validation : When enabled, it will generate an automatic validation based on the lookup, in case there is not any records found, the message will display as a warning (when Updating or Including a record).

Lookup Settings validation Interface.

  • Choose connection : Allows you to select another specific connection existing in the project. The select command will be done on the second connection.

Display Settings

The Display Settings allows to define the CSS for the fields individually. For each Display Settings of Scriptcase, exists the same attributes available for this interface.

Display Settings Interface.

  • CSS of the Title
    • Font : Allows to choose the font type, that will be applied to the application field title.
    • Font Size : Allows to choose the the font size, that will be applied to the application field title.
    • Font Color :Allows to choose a color for the font from the color pallet.
    • Background Color : Allows to define the color for the field, the color can be selected from the color pallet.
    • Bold : Applies the bold style to the font.
    • Underline : Applies the underline style to the font.
    • Border Size : Applies the border size to the title of the field.
    • Border Color : Allows to choose a color for the border, using a color pallet to apply to the title.
    • Horizontal Alignment : Allows to position the label of the field in the desired position (left,right,center and justify).
    • Vertical Alignment : Allows to position the label of the field in the desired position (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
    • Width : To define a width for the title of the field.
    • Height : To define a height for the title of the field.
  • CSS of the Field
    • Font : Allows to choose the font type, that will be applied to the application field.
    • Font Size : Allows to choose the the font size, that will be applied to the application field.
    • Font Color :Allows to choose a color for the font from the color pallet.
    • Background Color : Allows to define the color for the field, the color can be selected from the color pallet.
    • Bold : Applies the bold style to the font.
    • Underline : Applies the underline style to the font.
    • Border Size : Applies the border size to the field.
    • Border Color : Allows to choose a color for the border, using a color pallet to apply to the field.
    • Horizontal Alignment : Allows to position the field in the desired position (left,right,center and justify).
    • Vertical Alignment : Allows to position the field in the desired position (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
    • Width : To define a width for the field.
    • Height : To define a height for the field.
  • CSS of the Input Object
    • Font : Allows to choose the font type, that will be applied to the Input Object. For example: Radio, Select, Text, etc
    • Font Size : Allows to choose the the font size, that will be applied to the application field.
    • Font Color :Allows to choose a color for the font from the color pallet.
    • Background Color : Allows to define the color for the Input Object, the color can be selected from the color pallet.
    • Bold : Applies the bold style to the font.
    • Underline : Applies the underline style to the font.
    • Border Size : Applies the border size to the Input Object.
    • Border Color : Allows to choose a color for the border, using a color pallet to apply to the Input Object.
    • Horizontal Alignment : Allows to position the Input Object in the desired position (left,right,center and justify).
    • Vertical Alignment : Allows to position the Input Object in the desired position (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
    • Width : To define a width for the Input Object.
    • Height : To define a height for the Input Object.

Help Settings

Allow the developer to set up instructions and hints about the field’s use, allowing the developer to help the users about the system usage.

Help Configuration Interface.

Description of the settings attributes.

Help Description

In this area, you can set up a text that will be shown in the application according to the type of help selected below.

Help Type

Hint

Display a default icon ? beside the field. When the mouse is above the icon a help text will be displayed.

Help Display Type Configuration Interface.

Text

Display a text inside of a <span></span> beside the field.

Help Display Type Configuration Interface.

Pop-up

Display a default icon ? beside the field. To display the message just click in the icon that a Pop-up will be displayed with the help text.

Help Display Type Configuration Interface.

The icon displayed when selecting the types Hint or Pop-up vary according to the theme that is being used in the application. This icon can be modified in the CSS Buttons.

Tippy

Help display type configuration interface.

Displays a standard ? icon next to the field. When you hover the mouse over the icon, the message will be displayed in a more user-friendly way.

Help type settings (Tippy)

Help display type configuration interface.

  • Help Description : Defines where the field’s help button will be displayed

  • Help button position : Defines the display position of the Tippy hint in relation to the field’s help icon

  • Time to open hin Tippy : Defines the time in milliseconds for the Tippy hint to be displayed after the mouse passes over the help icon.

  • Time to close hin Tippy : Sets the time in milliseconds for the Tippy hint to be hidden after the mouse leaves the help icon.

  • Tippy hint width : Sets the width of the Tippy hint in pixels.

Help button position (except Tippy)

Allow to set up where the help button will be displayed in the field, there are two options:

Beside: The help icon will be displayed beside the field.
Column: The help icon will be displayed beside the label of the field.
