Menu Links

General Settings

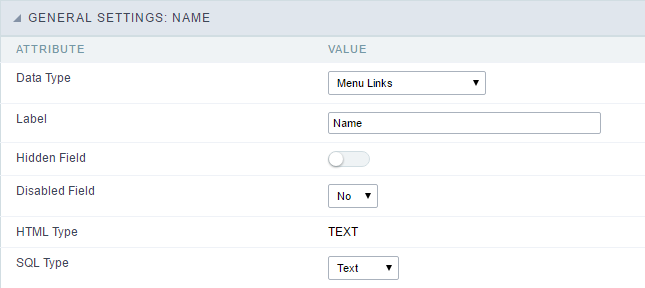

Menu Links field Configuration Interface.

Data Type

Define the type of field. When setting it to Menu Links, you can show a list of links in the application.

Label

The Label option lets you define the title of a field. Example: If the database field name is “cmp_name_client”, You can display a different name for the user, like “Client Name”.

Label below field

Defines the message to be displayed below the field.

Hidden Field

This option hides the field from the application, but its value is still available for JavaScript or PHP processing.

HTML Type

HTML Object to display the field in the form.

SQL Type

It informs the data type of field in the database.

Values Format

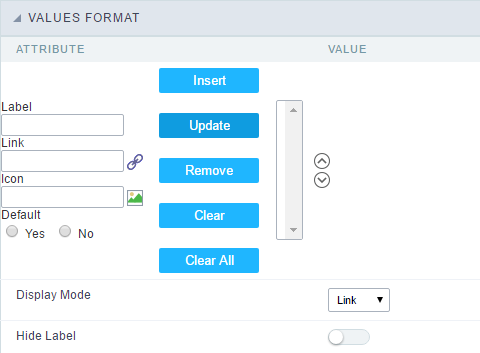

Values Format Interface.

It controls the Insert, Update and Delete of the menu items.

Label

The Label option lets you define the title of a field.

Link

It allows defining to call an external link when clicking on the item.

Icon

It displays an icon beside the link.

Default

Set the current item as default.

Option Buttons

• Insert: Insert a new item into the menu.
• Update: Update the selected item.
• Delete: Delete the selected item.
• Clear: Clears the data of the selected item.
• Clear All: Removes all items from the menu.

Display Mode

Define how to display the menu items; Select, Radio or Link:

• Select:

• Radio:

• Link:

Hide Label

You can enable or disable the label displaying.

Display Settings

The Display Settings allows to define the CSS for the fields individually. For each Display Settings of Scriptcase, exists the same attributes available for this interface.

• CSS of the Title
  • Font : Allows to choose the font type, that will be applied to the application field title.
  • Font Size : Allows to choose the the font size, that will be applied to the application field title.
  • Font Color :Allows to choose a color for the font from the color pallet.
  • Background Color : Allows to define the color for the field, the color can be selected from the color pallet.
  • Bold : Applies the bold style to the font.
  • Underline : Applies the underline style to the font.
  • Border Size : Applies the border size to the title of the field.
  • Border Color : Allows to choose a color for the border, using a color pallet to apply to the title.
  • Horizontal Alignment : Allows to position the label of the field in the desired position (left,right,center and justify).
  • Vertical Alignment : Allows to position the label of the field in the desired position (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
  • Width : To define a width for the title of the field.
  • Height : To define a height for the title of the field.
• CSS of the Field
  • Font : Allows to choose the font type, that will be applied to the application field.
  • Font Size : Allows to choose the the font size, that will be applied to the application field.
  • Font Color :Allows to choose a color for the font from the color pallet.
  • Background Color : Allows to define the color for the field, the color can be selected from the color pallet.
  • Bold : Applies the bold style to the font.
  • Underline : Applies the underline style to the font.
  • Border Size : Applies the border size to the field.
  • Border Color : Allows to choose a color for the border, using a color pallet to apply to the field.
  • Horizontal Alignment : Allows to position the field in the desired position (left,right,center and justify).
  • Vertical Alignment : Allows to position the field in the desired position (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
  • Width : To define a width for the field.
  • Height : To define a height for the field.
• CSS of the Input Object
  • Font : Allows to choose the font type, that will be applied to the Input Object. For example: Radio, Select, Text, etc
  • Font Size : Allows to choose the the font size, that will be applied to the application field.
  • Font Color :Allows to choose a color for the font from the color pallet.
  • Background Color : Allows to define the color for the Input Object, the color can be selected from the color pallet.
  • Bold : Applies the bold style to the font.
  • Underline : Applies the underline style to the font.
  • Border Size : Applies the border size to the Input Object.
  • Border Color : Allows to choose a color for the border, using a color pallet to apply to the Input Object.
  • Horizontal Alignment : Allows to position the Input Object in the desired position (left,right,center and justify).
  • Vertical Alignment : Allows to position the Input Object in the desired position (baseline, sub, super, top, text-top, middle, bottom, text-bottom).
  • Width : To define a width for the Input Object.
  • Height : To define a height for the Input Object.

Help Settings

Allow the developer to set up instructions and hints about the field’s use, allowing the developer to help the users about the system usage.

Description of the settings attributes.

Help Description

In this area, you can set up a text that will be shown in the application according to the type of help selected below.

Help Type

Hint

Display a default icon ? beside the field. When the mouse is above the icon a help text will be displayed.

Text

Display a text inside of a <span></span> beside the field.

Pop-up

Display a default icon ? beside the field. To display the message just click in the icon that a Pop-up will be displayed with the help text.

The icon displayed when selecting the types Hint or Pop-up vary according to the theme that is being used in the application. This icon can be modified in the CSS Buttons.

Tippy

Displays a standard ? icon next to the field. When you hover the mouse over the icon, the message will be displayed in a more user-friendly way.

Help type settings (Tippy)

• Help Description : Defines where the field’s help button will be displayed

• Help button position : Defines the display position of the Tippy hint in relation to the field’s help icon

• Time to open hin Tippy : Defines the time in milliseconds for the Tippy hint to be displayed after the mouse passes over the help icon.

• Time to close hin Tippy : Sets the time in milliseconds for the Tippy hint to be hidden after the mouse leaves the help icon.

• Tippy hint width : Sets the width of the Tippy hint in pixels.

Help button position (except Tippy)

Allow to set up where the help button will be displayed in the field, there are two options:

Beside: The help icon will be displayed beside the field.
Column: The help icon will be displayed beside the label of the field.
