Multiple Lines Text

General Settings

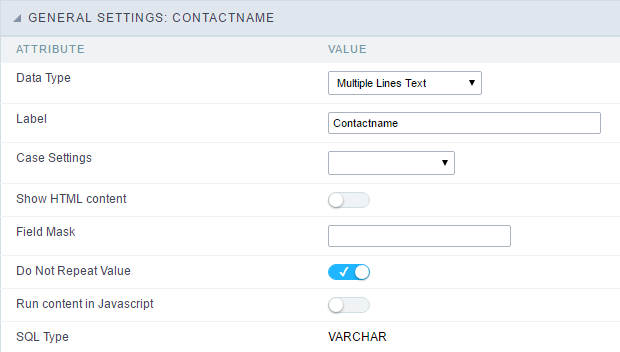

Multiple Lines Text field Configuration Interface.

• Data Type : Define the type of field for the application. When it is defined as a Multiple Lines Text, it accepts letters, numbers and special characters in multiple lines.
• Label : Defines the title of a field in the application. For example: if the field is defined in the database as cmp_name_client, it will be more clear for the comprehension of the user if the name would be “Client Name”.
• Case Settings : Convert the letter from the field when losing focus. The options are:
  • Upper case : All in Upper Case
  • Lower case : All in Lower case
  • Capitalize first word : Capitalizes the first letter of the first word
  • Capitalize all words : Capitalizes the first letter of all the the words
• Show HTML content : Determines if the HTML contained in the field will be displayed or not. If enabled, the HTML will be displayed, otherwise the HTML will be interpreted by the browser.
• Grid Mask : Defines the mask for the field display.There are two typed of masks described below:

Mask Examples

• Do Not Repeat Value : Do not repeat the value of the field in case it is the same as the previous record.



• Run content in JavaScript : If enabled, the JavaScript will be interpreted by the browser, otherwise the JavaScript will be displayed.
• SQL Type : Informs the data type of field in the database.

Lookup Settings

A method used to offer the user a list of values that can be selected in the form applications. For example, the gender field in the Database with the values M or W can be presented like Man or Women or in a dynamic way, having these values recovered from the database.

• Lookup Methods

You will have available two types of lookup methods: Manual (informing manually the conditions of the select) or Automatic (using a database query).

• Lookup Method - Automatic

• SQL Select Statement : Define the SQL command that will recover the values that will be displayed on the form field. The command needs to have the following structure:

  SELECT display_field FROM table WHERE key_field = {grid_field}


The Grid field needs to be referenced buy the curly brackets {}. While running the application, the field within the curly brackets is replaced by it’s value in the table.

• Multiple Values : When enabled, allows to select more than one item from the list, separated by a delimiter.
• Delimiter : Defines the character used to separate the values selected in the form. Only inform a value to this field if you need to separate the selected options with a different delimiter then (;).
• Use lookup in :
• Grid : Applies the lookup to all the Grid formats (HTML, PDF, XML , CSV and RTF).
• Summary : Applies the lookup only for the summary (HTML and PDF).
• Both : Applies to both the Grid and Summary.
• Default value : Defines the default value, used in the cases where the select command does not return any values.
• Display original and lookup value : When selected No, its displayed on it the value from the select command. Otherwise, it will be displayed the original value of the field and the value returned from the select command separated by the character in the “Separated by” field.
• Separated by : Defines which character will be used to separate the values of the field with the value returned from the lookup. It is only necessary to inform this value of the option Display original and lookup value is enabled.
• Choose connection : Allows you to select another specific connection existing in the project. The select command will be done on the second connection.

Lookup Method - Manual

This method is used so that the developer can create manually the list of values that will be saved to the generated application. This method is mostly used when the database does not have a table that contains this information.

• Lookup Type : Define the functionality of the lookup, being: Single Value, Multiple Values (delimiter), Multiple Values (position) and Multiple Values (binary).
• Single Value :

It will be displayed only one value for the field. And it will replace the stored value from the table with the one defined on the item label.

• Label : Text that will be displayed in the item list of the select field.

• Value : Attribute that corresponds to the value that is stored in the table field. For example, the value M will be included into the table when the user will view in the list Man.

• Multiple Values (Delimiter)

It can be displayed various values for the selected field. The values should be separated by a delimiter that will be informed. It is done a replacement on the parts of the field, separated by the delimiter, with the values contained in the list.

• Label : Text that will be displayed in the item list of the select field.
• Value : Attribute that corresponds to the value that is stored in the table field. For example, the value M will be included into the table when the user will view in the list Man.

• Delimiter Characters used to separate Multiple Values in the table field. If not informed, the default delimiter is a semi coma (;).

• Multiple Values (position)

Allows to store a diversity of information selected on the field in only one string. For this information to be added, you need to inform the label, initial position and the number of bytes that each information occupies on a string.

For this example, Gender, Marital status and Hobby were used. Gender uses one byte as does the Martial Status, the Hobby will use two bytes.

The example below:

Example: Of you choose Man, Single and Read, in database would be stored the following value MSRD.

• Label : Text that will be displayed in the Grid.
• Value : Attribute that corresponds to the value that is stored in the table field. For example, the value M will be included into the table when the user will view in the list Man.
• Start : Starting position of the string that is going to be stored. The first position is always 1.
• Size : Amount of bytes that is going to occupy in the string.

Multiple Values (binary)

Allows to store a diversity of information selected on the field in only one value.

In this example uses the following list (although it is not informed when inserting values to the list, each item has a value applied automatically according to the order):

To store the data, it is done an internal sum of the decimal number. See the examples below.

Example 1: If the options Sports and Culture were selected, the number stored in the table would be 3.

1 (Sports) + 2 (Culture) = 3

Example 2: If the options Sports, Pleasure and Reading were selected, the number stored in the table would be 13.

1 (Sports) + 4 (Pleasure) + 8 (Reading) = 13

• Label : Text that will be displayed in the Grid.
• Insert Button : Adds to the list the values informed on the fields Label and Value.
• Update Button : Modifies the attributes of the selected item.
• Remove Button : Remove the selected item from the list.
• Clear Button : Clear the Fields.
• Save Button : Allows the user to save all the items of the list, to use on other fields, just click on Load lookup definition.

• Load lookup definitions : Allows to refresh the list of values predefined when using the lookup. It will be listed the existing definitions in ScriptCase and the ones saved by the user.

• Use lookup in :
• Grid : Applies the lookup to all the Grid formats (HTML, PDF, XML , CSV and RTF).
• Summary : Applies the lookup only for the summary (HTML and PDF).
• Both : Applies to both the Grid and Summary.
• Default value : Defines the default value, used in the cases where the select command does not return any values.
• Display original and lookup value : When selected No, its displayed on it the value from the select command. Otherwise, it will be displayed the original value of the field and the value returned from the select command separated by the character in the “Separated by” field.
• Separated by : Defines which character will be used to separate the values of the field with the value returned from the lookup. It is only necessary to inform this value of the option Display original and lookup value is enabled.
