Gantt Chart
Gantt Chart settings
A Gantt chart is a type of bar chart that illustrates a project schedule. Gantt charts illustrate the start and end dates of the terminal elements and summary elements of a project. Terminal elements and summary elements comprise the work breakdown structure of the project.

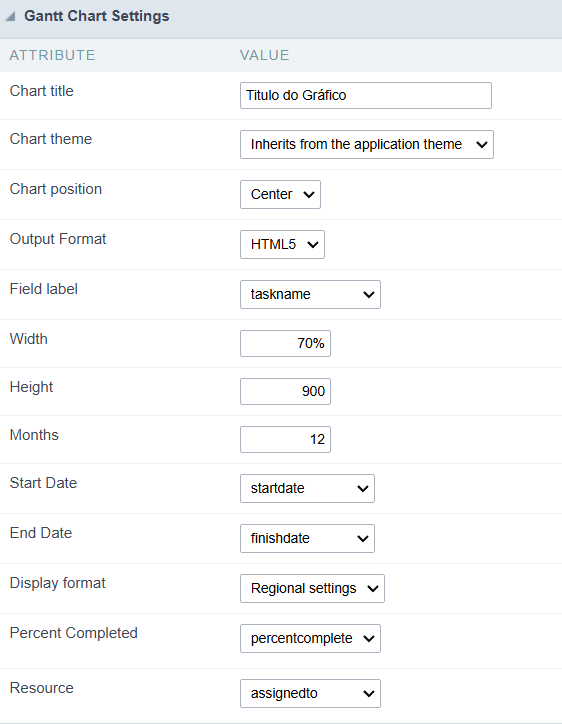

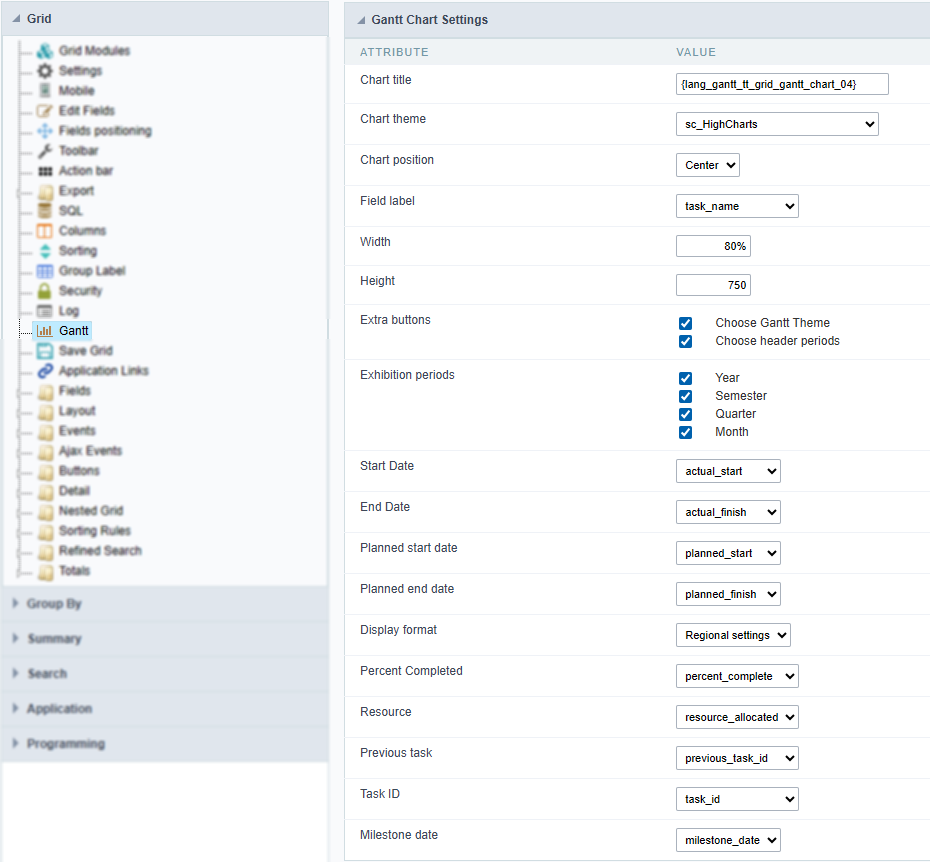

| Attribute | Description |
|---|---|

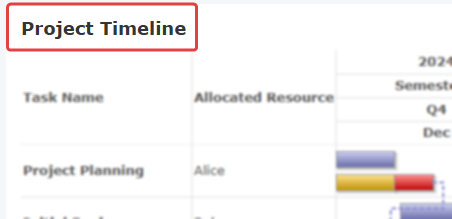

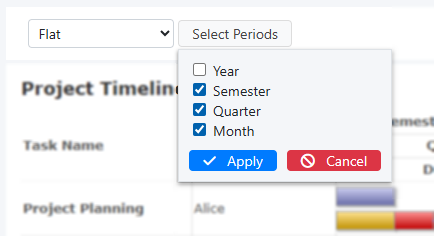

| Chart Title | Defines the title for the chart. |
| Chart Theme | Sets the theme used in the chart. |
| Chart Position | Defines the display position of the chart. |
| Output Format | Output format, you can choose of HTML or HTML5 (the default option is HTML5) |

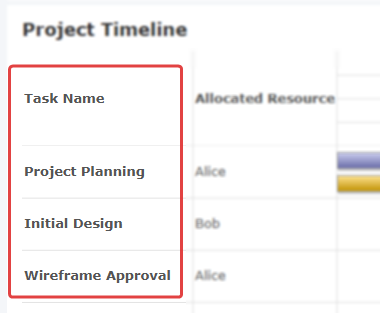

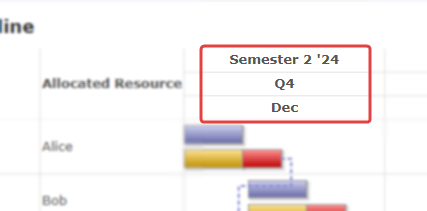

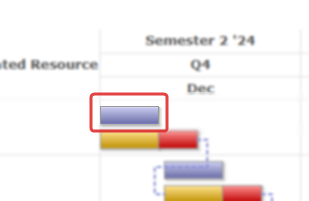

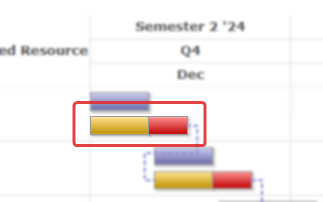

| Field label | Field containing the record label of the Gantt chart. You can choose which field will appear within the left column to describe the tasks. |
| Width | Gantt chart width. The default unit for this width is pixels, however you can also apply it in percent by adding the “%” sign after the number (i.e: 100%). |
| Height | Gantt chart height. The default unit for this width is pixels, however you can also apply it in percent by adding the “%” sign after the number (i.e: 100%). |
| Months | Allows you to set the number of months that will be displayed in the Gantt chart. |
| Start Date | Using this combo box you can choose the field that stores the start date, you need to have this record within the connected table. |
| End Date | Using this combo box you can choose field that stores the end date, you need to have this record within the connected table. |
| Display format | Allows you to set the display format of the fields date type. |
| Percent Completed | Using this combo box you can choose the field that stores the information regarding the task completion (percentage), you need to have this record within the connected table. |

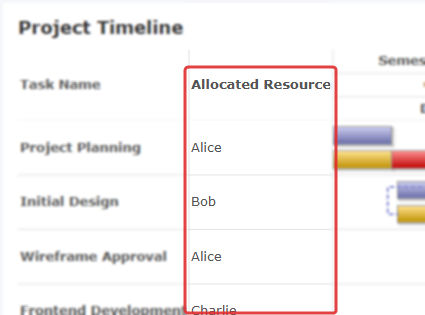

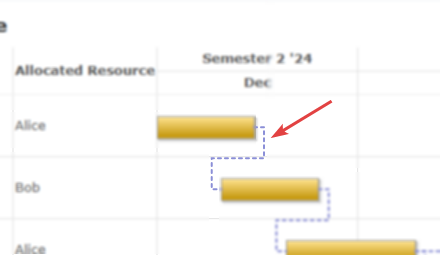

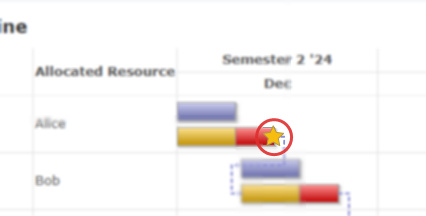

| Resource | Field containing the name of the resource allocated to the task. |
