Menu Items
On this screen, the developer manages the entire structure of the menu application for the system. It is possible to define navigation with menu items and sub-items, choose whether to display the user menu, configure the components that will be shown in the toolbar, and adjust all layout settings.

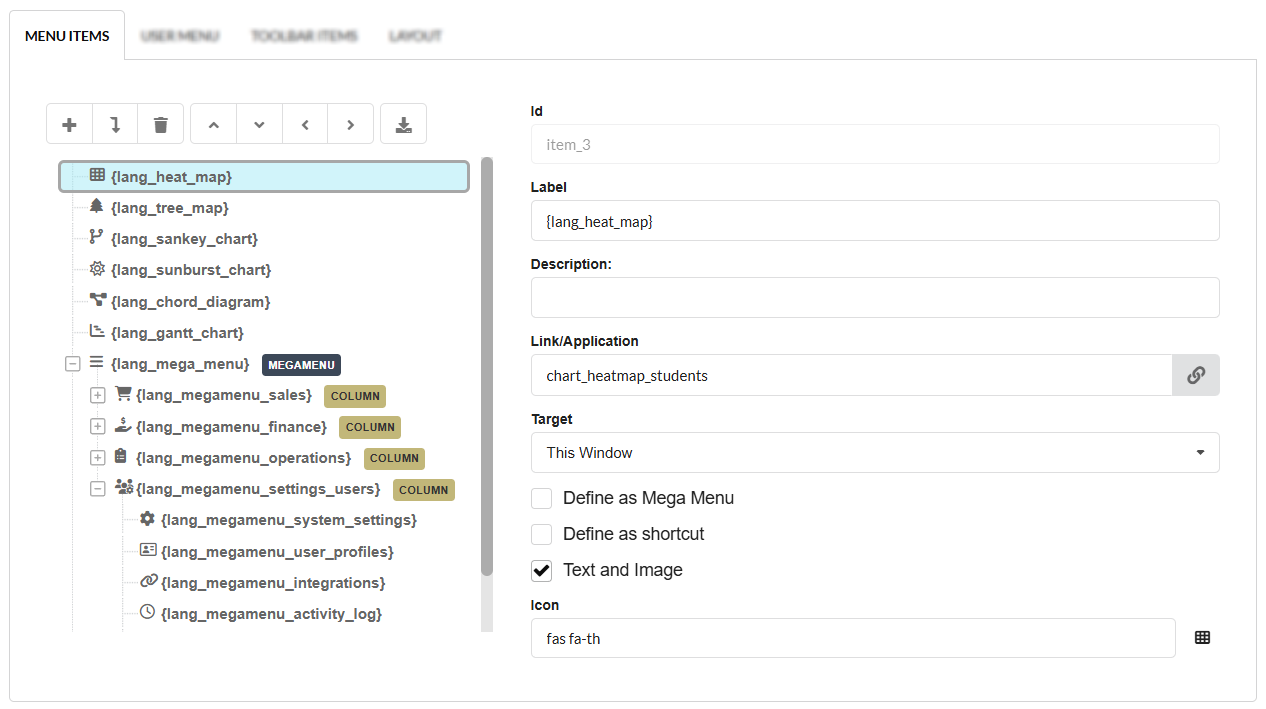

Menu items
In the Menu Items tab, you can define the items and sub-items that make up the menu navigation structure, as well as their visual aspects, such as the Label and Icon.
On mobile devices, if a menu item has both a link and sub-items, the link will be ignored to display the sub-items.

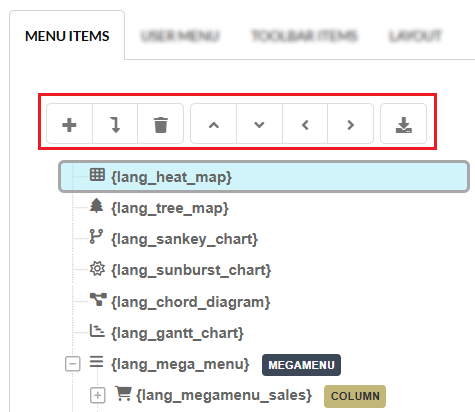

Menu Structure
On the left column, the developer can organize the menu structure using the management buttons.
Add Item
Allows adding an application to the menu.
Add Sub-Item
Allows adding a sub-item to the menu.
Remove
Deletes a menu item. Select the item or sub-item and click the remove button.
Move Up
Moves a menu item or sub-item up in the menu structure.
Move Down
Moves a menu item or sub-item down in the menu structure.
Move Left
Moves a menu item or sub-item to the left, reducing its hierarchy level.
Move Right
Moves a menu item or sub-item to the right, increasing its hierarchy level.
Import Applications
Allows creating a link to an application. The user can click the search button to select an application.
Application import allows the user to select applications from a list to be added. After selection, the menu levels can be organized using the available structuring buttons.

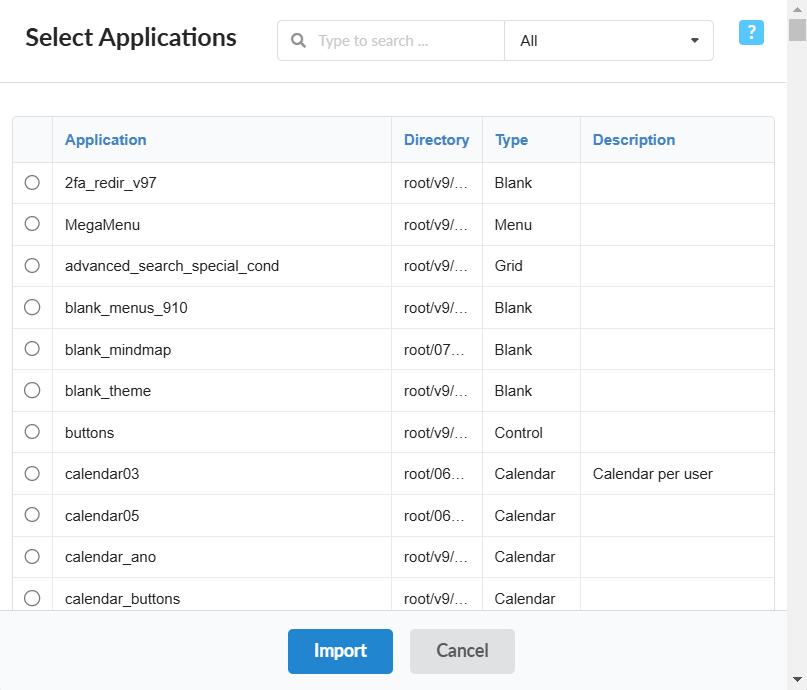

Application List for Import
Application Import Interface.

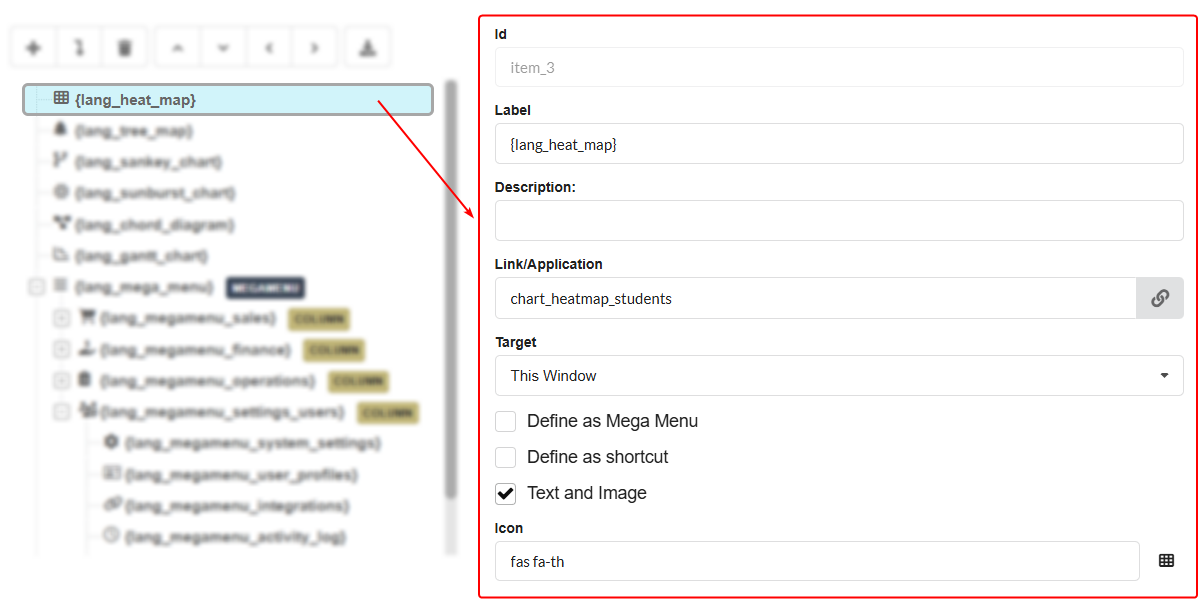

Selected Item Configuration
On the right column, you can configure the properties of the selected item.
ID
Displays the item creation ID. This information is useful for managing items using compatible macros.
Label
Defines the title of the item that will be displayed to the end user. The Label can be set as a fixed text or use a lang for internationalization.
Description
Allows adding a description to the menu item, making it easier to identify.
Link/Application
Defines the application or external link associated with the Menu item. The developer can use the search button to select an application from the project.
Application Import Interface.
Target
Defines how the application will open in the menu, either in the same window or a new one.
Define as Mega Menu
Enables the item as a Mega Menu, automatically organizing level 1 subfolders into columns.
Important: This option is only available for root-level items.

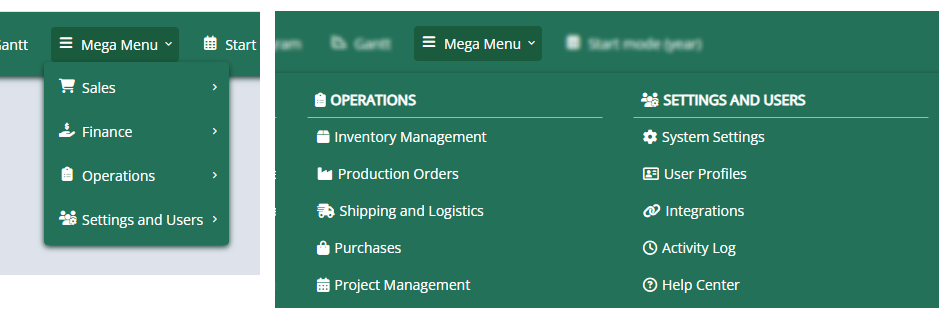

Display Comparison Mega Menu
On the left, the standard menu item; on the right, the same item configured as a Mega Menu.
Define as shortcut
Sets the icon as a shortcut.
Text and Image
Displays the text along with the image.
Icon
The image that will be displayed as the menu item icon. The user can click the search button to select the desired image. This field is optional.

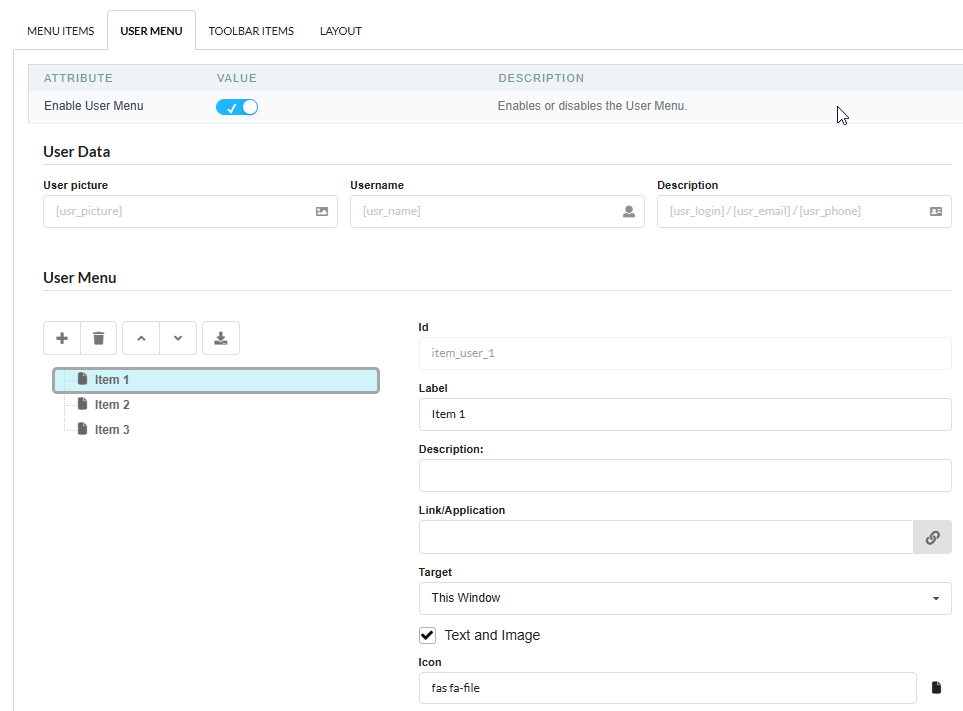

User Menu
These settings concern the items that will be displayed when clicking on the user icon in the menu.
Enable User Menu
Enables or disables the user menu
Use picture
Picture that will be displayed.
Username
User name that will be displayed.
Description
Description for the menu user.
Insert item
Used for the user to include the application in the menu.
Remove
Removes an item from the menu. Select the item or sub-item, and then click the remove button.
Move up
Allows you to move a menu item or sub-item up.
Move down
Allows you to move a menu item or sub-item down.
Import Applications
Allows you to create a link with an application. User can click on search button to select application.
Label
Title of the item that will be displayed.
Link
Name of the application that will create the link. User can click on search button and select application.
Target
Defines how the application will be displayed in the menu, which can be: the same window or another window.
Text and image
Displays the text together with the image
Icon
Name of the image that will be displayed as an icon in the menu item. User can click on search button to select desired image. Optional field.

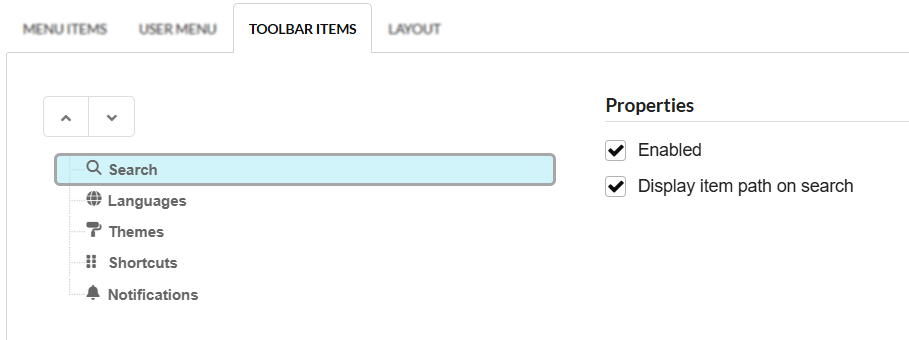

Toolbar
It enables the standard menu items to be displayed.
Sorting the items
Move up
Allows moving a menu item up.
Move down
Allows moving a menu item down.
Properties
Search
- Enabled - Allows enabling or disabling the search item in the menu’s toolbar.
- Display item path in search - Defines whether the path to the item will be displayed alongside the item’s name after the search.
Languages
- Enabled - Allows enabling or disabling the languages item in the menu’s toolbar.
Themes
- Enabled - Allows enabling or disabling the themes item in the menu’s toolbar.
- Available themes - List of selected themes to be displayed in the application.
- All - Selects all themes.
- None - Removes all themes, eliminating the button from the running application.
Shortcuts
- Enabled - Allows enabling or disabling the shortcuts item in the menu’s toolbar.
- Show Shortcuts title - Configures whether the title of the shortcuts list will be displayed in the running application.
- Shortcuts order - Allows sorting the shortcut items.
Notifications
- Enabled - Allows enabling or disabling the notifications item in the menu’s toolbar.
- Notification listing application - Link to the application that will display the notification list in the menu item.
- Notification refresh interval - Time in milliseconds for the notification list to be updated.
- Row limit - Maximum number of notifications displayed on the icon.
- Connection - Defines the connection where the notification system tables are located.
- User ID variable - Name of the global variable that stores the user’s login.
- Table mapping - For the notification module to function in the menu, it is necessary to link the Notification, inbox, and users tables for proper display of notifications on the icon.
When creating a notification module and selecting an already created menu, the fields should be automatically filled.

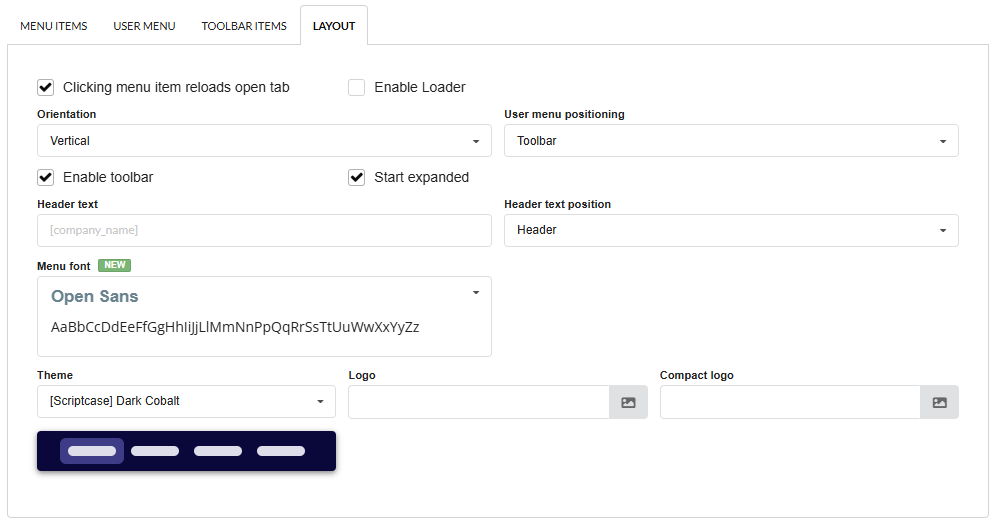

Layout
Layout
Defines how the menu will be displayed.
Clicking menu item reloads open tab
Specifies whether the open tab will be reloaded when the menu item is clicked.
Enable Loader
Enables the loading animation when a menu item is being loaded.
Orientation
Determines if the menu will be displayed horizontally or vertically.
User menu positioning
Specifies the position of the user menu when the main menu is set to vertical.
Enable toolbar
Enables the toolbar in the menu.
Start expanded
Specifies whether the menu will start in an expanded or collapsed state. Available only for vertical menus.
Header text
Sets the text to be displayed in the menu header.
Header text position
Specifies the position of the menu header text.
Menu font
Defines the font used in the menu.
Theme
Menu theme to be defined.
Logo
Logo that will be displayed.
Compact Logo
Compressed image that will be displayed as the logo in the menu
