Typical Deploy

Pre-Requirements

For applications to function correctly outside the development environment, some requirements must be followed.

  • Web Server: Have a configured web server: Apache (recommended), IIS, nginx, or another;
  • Database: Enable the database driver that will be used by the system. Check how to enable the driver for your database.
  • Production Environment: Keep the production environment updated and compatible with the current version of the tool;
  • Necessary PHP Functions: Some PHP functions must be enabled for the correct functioning of some application features. Check the list of these functions
  • Compatible PHP: Have a PHP configured on the web server, compatible with the version of Scriptcase used. Check the compatibility table below.
PHP Compatibility in Development with PHP in Production

The PHP version used in the development environment directly affects the PHP version that can be used in the production environment.

See the table below.

PHP of Installation (Development) Compatible PHP in Production Environment (Production)
Scriptcase with PHP 7.3 PHP 7.2 PHP 7.3 PHP 7.4
Scriptcase with PHP 8.1 PHP 7.2 PHP 7.3 PHP 7.4 PHP 8.0 PHP 8.1

This type of deployment is for users that want the Production Environment (Common Libraries) with the default settings from ScriptCase, the basic setup is done already be ScriptCase. We will show the entire process of deployment in this documentation.

Project Deployment

Access your project and choose the option “Project -> Deploy Project”, available on the top menu.

ScriptCase "Project" Menu

After clicking on the Deploy applications button, you will have the option to deploy all the applications from the project or you can select the applications that you want to deploy.

Select All Applications

When select this option, all the applications of the project will be deployed.

Select the applications to be deployed

Select the applications individually

This option allow us to select the applications that will be deployed.

Select the applications to be deployed

List of available applications

During this process, the Scriptcase list all the Applications in the project so you can select the applications that you wish to deploy.

Select the applications to be deployed

Option Description
Per type Selecting this option, you can see the list of applications grouped by your respective type.
Per folder Selecting this option, you can see the list of applications grouped by your respective folder.

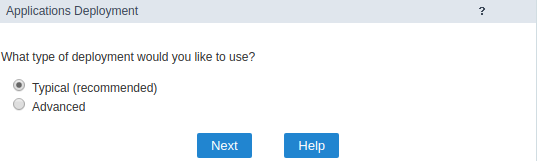

Choose of the deployment type (Typical)

Next, we need to choose the type of desired deployment.

Select the applications to be deployed

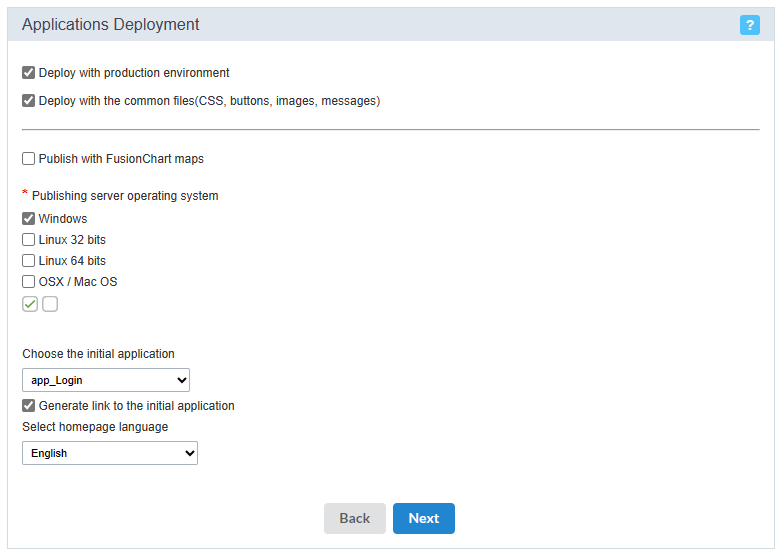

Properties of a deployment

Deployment properties

We must define which application will be the deployment initial application. In this step, we also define if we will send the common libraries with our project.

Select the initial application for the deployment

It is necessary to select the common libraries, which are the files responsible for the Production Environment. It is necessary to select the common files, for the images, css and custom messages to be sent at the moment of the deploy.

Option Description
Deploy with the Common Libraries(Prod) Contains the used libraries by our applications and also the informations of connections used by the project.
Deploy with the common files This option define if the files that make up an application will be sent in the publication files. The files are: Images, css and customized messages.
Publish with FusionChart Maps Checking this option, the referred files to the FusionCharts library will be added in the deployment file.
Publishing server operating system This is a mandatory option for a project deployment, when you select the operating system, the Scriptcase will create the correct structure for your deployment.
Choose the Initial Application Defines the initial system application.
Generate link to the Initial application This feature avoids the creation of redirections in the production environment and creates an access screen for the initial application defined in the previous attribute. This configuration should prevent the system from being mistakenly identified as an insecure page by some browsers.
Select homepage language Defines the language of the text that will be displayed on the home page, where the button for accessing the home application will be displayed.

Generated Files

At this stage, the way in which the publication will be carried out will be defined.

  • Generate ZIP with applications - In this option, at the end of the publication, a button will be displayed to download the .zip file generated with the publication files. We recommend using it to publish in production environments configured on Windows.
  • Generate Tar.Gz with applications - A .Tar.Gz will be generated with the publication files, at the end of the process the file download will be displayed. This type of compression is recommended for publishing in production environments configured on Linux or MacOS.
  • Publish to directory on the server - Allows direct publishing to a local directory, where Scriptcase is installed. This type of publication is recommended for servers that share the development and production environment. The publication files will be generated within the indicated folder, therefore, we recommend using an exclusive folder for publication. For example, when indicating the C:\Program Files\NetMake\v9-php81\wwwroot\project_name directory, the application files, and the _lib directory with css and themes will be placed directly in the project_name folder.
  • Publish to FTP server - Sends the publication files directly to the configured FTP server. The publication files will be placed in the indicated directory, therefore, we recommend using a specific directory for the publication.
  • SFTP - Just like FTP, publishing via SFTP sends the publication files directly to the configured server, placing the publication files in the specified directory.

Generate ZIP or Tar.Gz with applications

The Scriptcase will generate a file Zip or Tar.Gz. In the end of this process, will be displayed a report of the deployed applications with the download link for download the project.

Select the ZIP method

The file ZIP or Tar.Gz generated, must be decompressed only in the deployment server, to avoid that the files be corrupted.

Deploy on a server directory

Deploys the project in the informed directory. We must inform the absolute path to the deployment directory.

Choose the Directory to deploy

This option should be used in the case that the deploy is going to be in the same sever where ScriptCase is installed, otherwise this option is not valid.

Deploy on FTP server

This option generates the files directly in the FTP remote server.

Select the FTP method

Options Description
FTP server Server where you will deploy your project. Inform the domain or the server’s IP.
User User for the FTP server in the production, remembering that the user need to have permission to write in the server folder, otherwise it will not work.
Password Password for the FTP user.
FTP Folder Server directory where the project will be deployed in.

To use this option is necessary that you have a server that provides the FTP access and an user with write permissions.

Deploy on a SFTP server

Deploys the application automatically on a remote SFTP server.

Select the SFTP method

Options Description
SFTP server Server where you will deploy your project. Inform the domain or the server’s IP.
Port Defines the port that will be used when connecting to the server.
User User for the SFTP server in the production, remembering that the user need to have permission to write in the server folder, otherwise it will not work.
Password Password for the SFTP user.
SFTP Folder Server directory where the project will be deployed in.
Compress files before sending This option defines if the files will be compressed before being sent to the server or if they will be sent one by one. We recommend checking the option so that the files are compressed before sending, in this way the publication tends to be much faster, especially when publishing with a large number of files.

To use the SFTP option is necessary that the user have permission to write on the server folder.

Deployment log

At the end of the process you will receive a report with all the applications deployed and a download link of the project ready to be published.

Final publication Screen

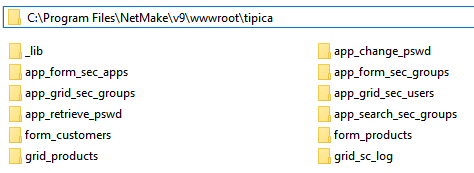

Server Directories

In the server root was created a folder(typical) where we will decompress the deployment files.

Server Directories

In the end of the compression process, we must access your project through the browser.

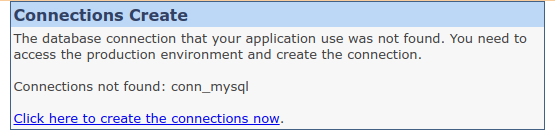

In the first access we must configure the connections in Production Environment.

First Access
